- Miniature Circuit Breaker
The M-Series miniature circuit breakers offer high performance in a compact design.
- Ratings
1-2 Poles, 0.2-50 amps, 125/250 VAC, 80 VDC Max.
- Agency Approvals
UL 489A, UL 1077, CSA Accepted, TUV & VDE certified to IEC/EN 60934, CCC.
- Fully Customizable
Multiple design optionsincluding 16 different time delays, 5 terminal styles, a variety of panel hardware, multiple color options and legend imprinting.
CARLING TECHNOLOGIES

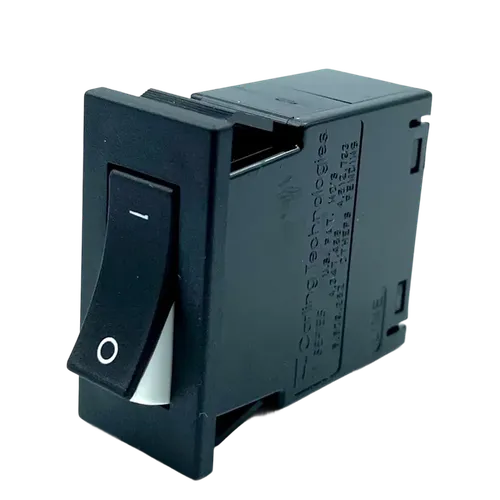

M-Series
High performance miniature circuit breakers are front panel mounted, offer several agency approvals and multiple configuration options for extensive design flexibility. The M-Series are available as a one to two or parallel pole configuration with UL 489A, UL 1077, CSA, TUV and VDE approvals with ratings from 0.02 to 50 amps, up to 250VAC/80VDC. 1,000 amps max IC; 600 amps TUV and 500 amps VDE.
:format(webp))
